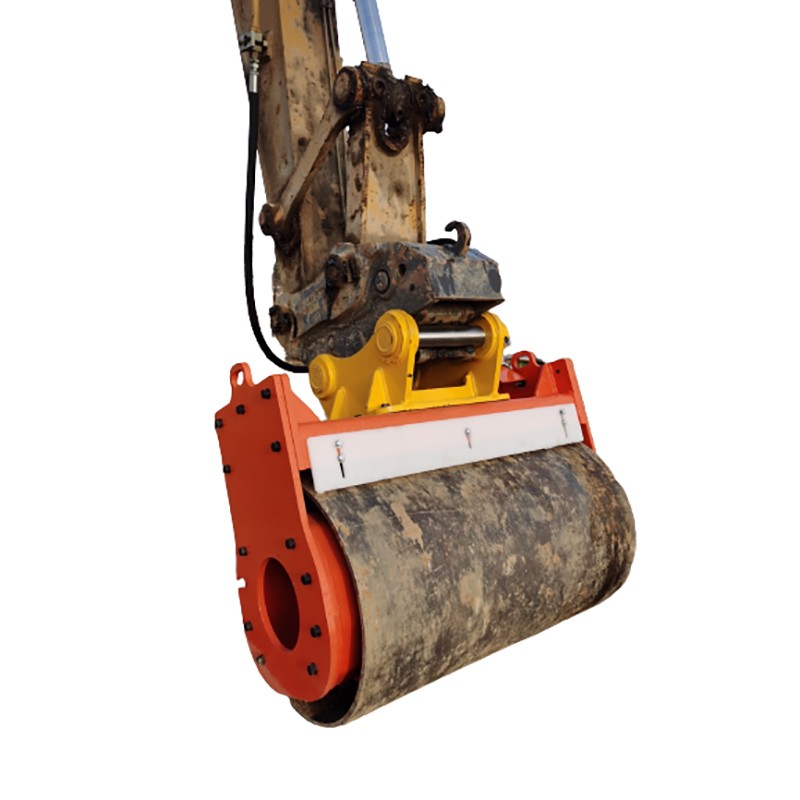

挖掘机用振动钢轮为挖掘机辅具。该钢轮安装后，使得挖掘机可压实作业，用于各种河堤、斜坡和沟槽等传统压路机无法进入的斜面和平面。 |
型号 Model Number | BKM-V07 | BKM-V13 | BKM-V20 | BKM-V30 | BKM-V40 |
适用挖机吨位 Excavator Type | 4-9T | 11-16T | 17-23T | 24-30T | 35-40T |
钢轮宽度 Drum Width | 650mm | 800mm | 1200mm | 1400mm | 1500mm |
钢轮直径 Drum Diameter | 560mm | 560mm | 700mm | 700mm | 700mm |
打击力 Centrifugal Force | 40KN | 60KN | 80KN | 100KN | 100KN |
振动次数 Vibration | 2000rpm | 2000rpm | 2000rpm | 2000rpm | 2000rpm |
整体重量 Weight | 300Kg | 400Kg | 1000Kg | 1200Kg | 1350Kg |
外形尺寸 (W1XH1XD1) Machine dimensions | 850x750x560 mm | 1000x750x560 mm | 1450X1160X700 mm | 1550X1160X700 mm | 1650X1160X700 mm |
定制服务 Customized service | 可依照客户挖机尺寸提供定制服务 Customized service can be provided according to the size of customers’ excavators | ||||
