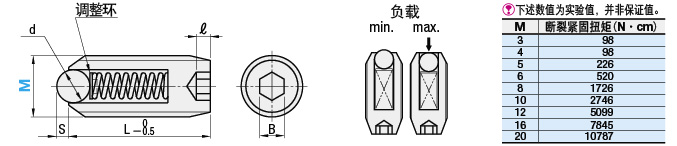

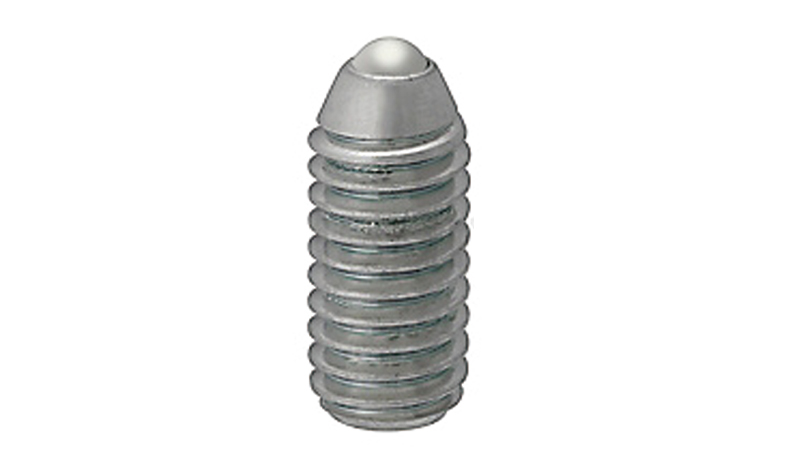

| 型式 | d | S | L | ℓ | B | 轻载型 | 重载型 | 超重载型 | ||||
| Type | M (粗牙螺纹) | 负载(N) | 负载(N) | 负载(N) | ||||||||
| min. | max. | min. | max. | min. | max. | |||||||
| BPU BPM BPQ | 3 | 1.5 | 0.5 | 7 | 1 | 1.5 | 1 | 2 | 1.5 | 2.9 | 2.2 | 5 |
| 4 | 2.5 | 0.8 | 9 | 2.4 | 2 | 2 | 4.9 | 3.9 | 9.8 | 2.5 | 12.5 | |
| 5 | 3 | 12 | 2 | 2.5 | 2.9 | 9.8 | 4.9 | 19.6 | 11.2 | 24.1 | ||
| 6 | 13 | 2.5 | 3 | 4.9 | 14.7 | 9.8 | 29.4 | 17.7 | 33.4 | |||
| 8 | 4 | 1 | 15 | 2.5 | 4 | 6.9 | 19.6 | 12.7 | 39.2 | 21.4 | 45.3 | |
| 10 | 5 | 1.2 | 16 | 3 | 5 | 8.8 | 24.5 | 18.6 | 49 | 23.5 | 58.7 | |
| 12 | 7.1 | 1.8 | 20 | 3 | 6 | 9.8 | 29.4 | 19.6 | 58.8 | 24.1 | 62.3 | |
| 16 | 9.5 | 2.5 | 25 | 3 | 8 | 15.7 | 49 | 29.4 | 98 | 43.6 | 116 | |
| 20 | 11.9 | 4.5 | 40 | 6 | 10 | 53.9 | 98 | 78.4 | 147.6 | 84.6 | 196.6 | |
