株洲钻石 强力铣夹头用直筒夹套。

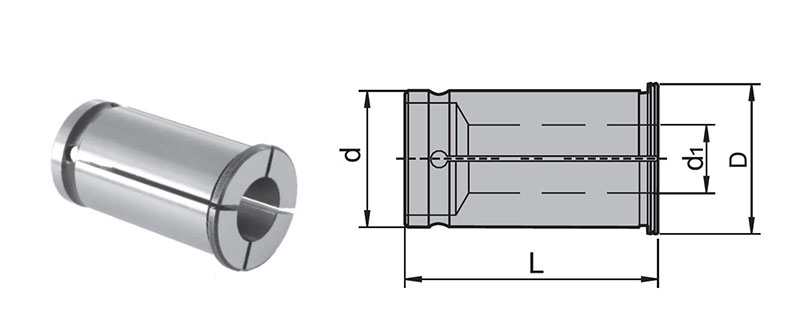

| 型号 | d | d1 | D | L |
| ZC20L-4 | 20 | 4 | 23 | 53 |
| ZC20L-5 | 20 | 5 | 23 | 53 |
| ZC20L-6 | 20 | 6 | 23 | 53 |
| ZC20L-8 | 20 | 8 | 23 | 53 |
| ZC20L-10 | 20 | 10 | 23 | 53 |
| ZC20L-12 | 20 | 12 | 23 | 53 |
| ZC20L-14 | 20 | 14 | 23 | 53 |
| ZC20L-16 | 20 | 16 | 23 | 53 |
| ZC20L-18 | 20 | 18 | 23 | 53 |
| ZC25L-4 | 25 | 4 | 28 | 60 |
| ZC25L-5 | 25 | 5 | 28 | 60 |
| ZC25L-6 | 25 | 6 | 28 | 60 |
| ZC25L-8 | 25 | 8 | 28 | 60 |
| ZC25L-10 | 25 | 10 | 28 | 60 |
| ZC25L-12 | 25 | 12 | 28 | 60 |
| ZC25L-14 | 25 | 14 | 28 | 60 |
| ZC25L-16 | 25 | 16 | 28 | 60 |
| ZC25L-18 | 25 | 18 | 28 | 60 |
| ZC25L-20 | 25 | 20 | 28 | 60 |
| ZC32L-5 | 32 | 5 | 36 | 65 |
| ZC32L-6 | 32 | 6 | 36 | 65 |
| ZC32L-8 | 32 | 8 | 36 | 65 |
| ZC32L-10 | 32 | 10 | 36 | 65 |
| ZC32L-12 | 32 | 12 | 36 | 65 |
| ZC32L-14 | 32 | 14 | 36 | 65 |
| ZC32L-16 | 32 | 16 | 36 | 65 |
| ZC32L-18 | 32 | 18 | 36 | 65 |
| ZC32L-20 | 32 | 20 | 36 | 65 |
| ZC32L-25 | 32 | 25 | 36 | 65 |
| ZC40L-6 | 40 | 6 | 44 | 74 |
| ZC40L-8 | 40 | 8 | 44 | 74 |
| ZC40L-10 | 40 | 10 | 44 | 74 |
| ZC40L-12 | 40 | 12 | 44 | 74 |
| ZC40L-14 | 40 | 14 | 44 | 74 |
| ZC40L-16 | 40 | 16 | 44 | 74 |
| ZC40L-18 | 40 | 18 | 44 | 74 |
| ZC40L-20 | 40 | 20 | 44 | 74 |
| ZC40L-25 | 40 | 25 | 44 | 74 |
| ZC40L-32 | 40 | 32 | 44 | 74 |
| ZC50L-6 | 50 | 6 | 55 | 85 |
| ZC50L-8 | 50 | 8 | 55 | 85 |
| ZC50L-10 | 50 | 10 | 55 | 85 |
| ZC50L-12 | 50 | 12 | 55 | 85 |
| ZC50L-14 | 50 | 14 | 55 | 85 |
| ZC50L-16 | 50 | 16 | 55 | 85 |
| ZC50L-18 | 50 | 18 | 55 | 85 |
| ZC50L-20 | 50 | 20 | 55 | 85 |
| ZC50L-25 | 50 | 25 | 55 | 85 |
| ZC50L-32 | 50 | 32 | 55 | 85 |
| ZC50L-40 | 50 | 40 | 55 | 85 |
